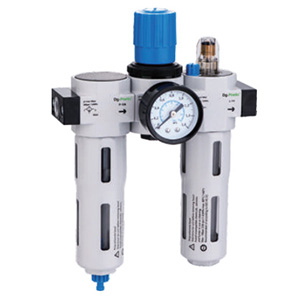

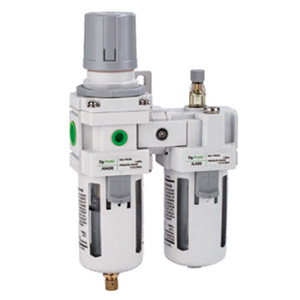

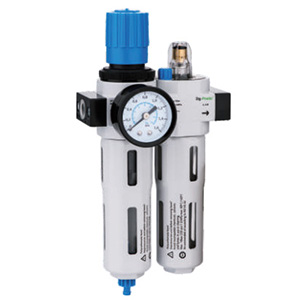

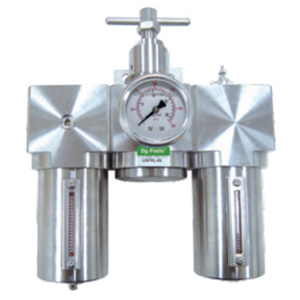

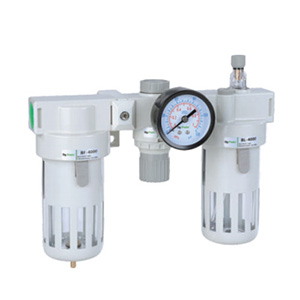

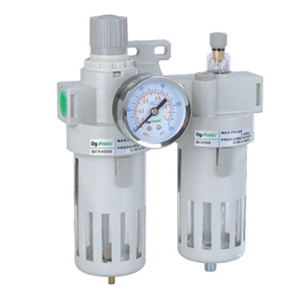

Air Filter Regulator Lubricator Combination

Choosing the appropriate Filter Regulator Lubricator (FRL) unit and compressor air filter is essential for optimizing system efficiency, extending component lifespan, and maintaining overall performance. Below are key factors to consider during the selection process:

1. Type of Application

Different applications have unique air quality and filtration requirements:

Evaluate the type of contaminants, operating conditions, and equipment sensitivity.

Select filters designed for your specific use case—whether general industrial, high-precision instruments, or harsh environments.

When in doubt, consult with a qualified supplier or filtration expert to ensure compatibility and compliance with system needs.

2. Filter Micron Rating

The micron rating determines how fine the filtration will be:

40 μm is standard for general use, suitable for removing larger particulates.

5 μm or finer filters are recommended for precision equipment or applications requiring cleaner air.

A two-stage filtration system (40 μm followed by 5 μm) can provide high-efficiency moisture and particulate removal.

Tip: Choose a micron rating that meets cleanliness requirements while maintaining acceptable service intervals and maintenance costs.

3. Flow Rate and Pressure Drop

The size of the filter should match the airflow demands of your system:

Higher flow rates require larger port sizes and filter bodies to reduce pressure drop.

Refer to manufacturer performance charts showing pressure drop versus supply flow at specified inlet pressures.

Select a filter with minimal pressure loss while meeting your system’s flow capacity.

4. Efficiency and Filtration Quality

Not all filters with the same micron or flow rating perform equally:

Consider filtration efficiency, contaminant holding capacity, and pressure drop characteristics.

Premium filters may have a higher upfront cost but deliver better long-term performance and equipment protection.

5. Operating Temperature

Ensure the selected FRL unit or filter can withstand your operating temperature range:

Standard filters are sufficient for ambient temperatures.

For applications above 450°C, choose high-temperature-rated filters made with heat-resistant materials.

6. Drain Valve Considerations

Compressed air naturally contains water vapor. When air is compressed, this vapor condenses and collects as liquid water:

A drain valve is critical for discharging accumulated condensation from the filter bowl.

Regular draining prevents internal corrosion, protects pneumatic tools, and extends compressor life.

Choose between manual, semi-automatic, or fully automatic drain valves depending on your maintenance preferences.

Conclusion

Selecting the best FRL and air filter is more than just matching sizes and thread types. It involves a comprehensive evaluation of your system’s flow requirements, air quality standards, operating conditions, and maintenance practices. The right choice will ensure efficiency, durability, and reduced total cost of ownership over time.
