Electric solenoid valve two ways

What's the electric solenoid valve?

An electric solenoid valve is a type of valve that uses an electric current to control its operation. It’s typically made up of a coil of wire (the solenoid) that, when energized, creates a magnetic field that drive a iron core to either opens or closes the valve. This type of valve is commonly used in fluid and gas control systems, where automatic or remote control of flow is needed.

Here’s how it works in simple terms:

Coil Activation: When an electric current passes through the solenoid coil, it generates a magnetic field.
Magnetic Force: This magnetic field moves a plunger or piston, which opens or closes the valve seat.
Flow Control: When the valve is open, fluid or gas can flow through the system. When closed, the flow is stopped.

Modern 2 way electric solenoid valve offer fast operation, high reliability, long service life, and space-saving design.

The structure of electric solenoid valve two Ways

1. Pilot Operated

The inner structure

How does electric solenoid valve works?

To Open the Valve:

Energizing the coil creates a magnetic field that actuates the iron core (④), lifting it within the sleeve tube (⑩) to open the pilot orifice (⑦).
This action releases the liquid above the diaphragm through the pilot drain port (⑦), while liquid enters through the diaphragm bleed hole (⑧).
As liquid is released, the pressure above the diaphragm decreases, reducing the force on the diaphragm/piston, which then lifts to open.
Full system pressure on the opposite side of the diaphragm lifts it away from the main valve orifice (⑨), allowing media to flow freely.

To Close the Valve:

When the power is turned off, the magnetic field collapses, causing the iron core to move downward and close the pilot drain port.
Fluid enters the chamber above the diaphragm, raising the pressure until it matches the inlet pressure.
The increasing pressure forces the diaphragm downward, aided by the spring (⑬), closing the valve.

To know more detailes.

2. Direct Acting

The inner structure

How it works?

To open the valve:

1: When the valve is energized, the coil generates a magnetic force that lifts the plunger (⑨). The plunger moves upward to open the pilot orifice (⑦), while simultaneously lifting the diaphragm bracket (⑥) to open the main valve orifice.

2: The liquid above the diaphragm exits through the diaphragm orifice (⑦), while liquid enters through the smaller orifice (⑬), known as the diaphragm bleed hole.

3: Full system pressure on the opposite side of the diaphragm/piston helps lift the diaphragm/piston away from the main orifice, allowing the full media flow through the valve.

Close the valve:

1. When the power is shut off, the iron core will move downward, closing the Diaphragm Orifice.

2. Fluid will enter the chamber above the diaphragm, causing the pressure to increase until it matches the inlet liquid pressure.

3. The diaphragm is then pushed downward by the force of the spring (3) and downward pressure, closing the valve.

To know more detailes.

Our compact electric solenoid valve

Key Features:

Electrically Actuated: Uses an electromagnetic coil to open or close the valve.

Compact Design: Suitable for tight spaces and small systems.

Fast Response Time: Opens and closes quickly for precise flow control.

Low Power Consumption: Ideal for battery-operated or low-energy applications.

Various Configurations: Available in normally closed (NC) or normally open (NO) types.

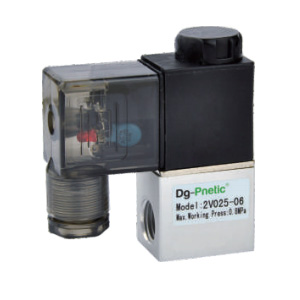

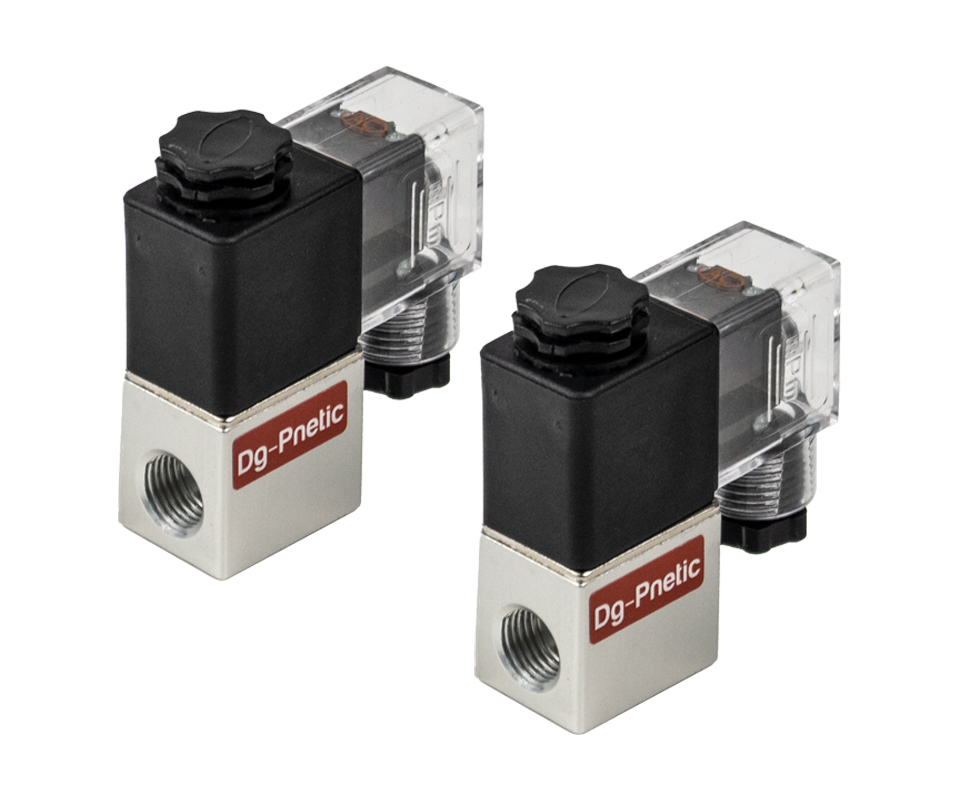

2V Aluminum electric solenoid valve

* The Internal Pilot Solenoid Valve Type: 2 Port 2 Position Normally closed type.

* Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.

* The inner hole is machined by a special process, with low frictional resistance, low starting air pressure, and long service life.

* Normally used to control pilots or diaphragms of larger valves or small cylinders that is alternatively pressurized and exhausted.

* Material: Aluminium, Brass; Working Pressure: 7-145Psi.

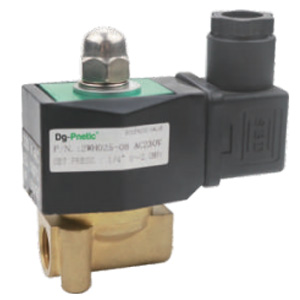

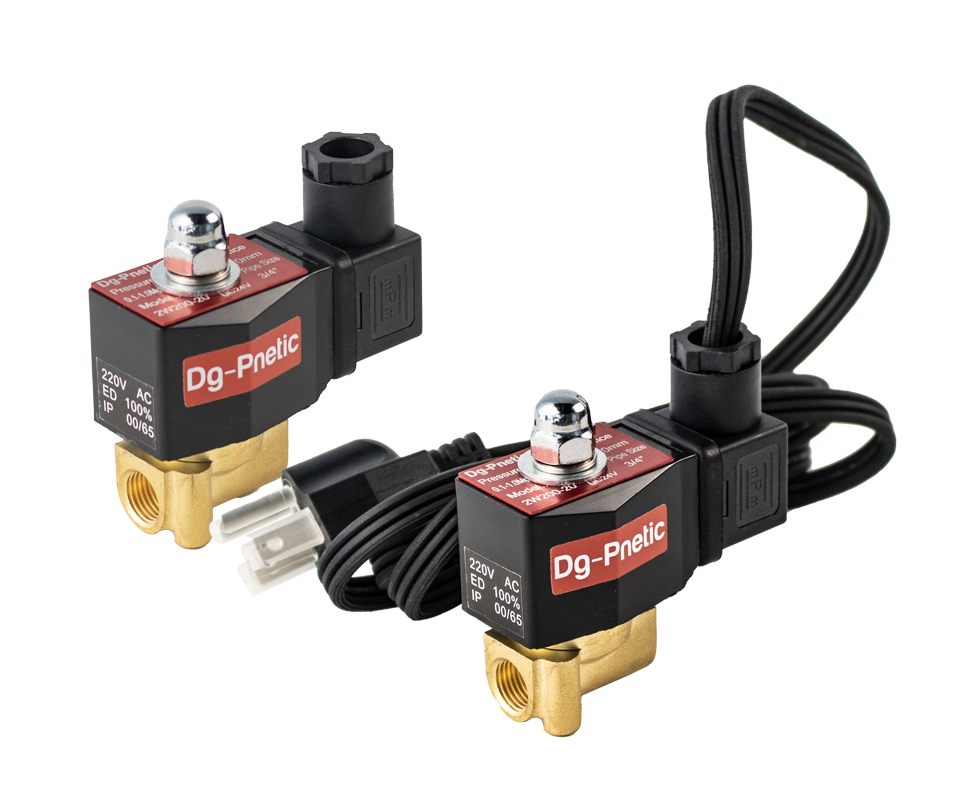

2W Brass compact electric solenoid valve

* The 2W compact valve is a direct acting 2/2 solenoid valve intended for the shut-off of the networks of common fluids such as water, air, neutral gases, vapor and gas oil.

* Normally closed operating. Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.

* The standard construction is with brass body and stainless steel internal parts. The seat is in FPM.

* This valve is operating with no minimum differential pressure.

Material: Brass; Working Pressure: Model 2WH Series: 0-280Psi. Model 2W Series: 0-98Psi.

QX Compact electric solenoid valve

* QX compact valve is a direct acting solenoid valve intended for the shut-off of the networks of common fluids. Either used to control pilots or diaphragms of larger valves or small cylinders that is alternatively pressurized and exhausted.

* Normally closed operating. Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.

* The standard construction is with brass body. It has two models, 2/2 way and 2/3 way. No minimum differential pressure.

Material: Brass; Working Pressure: 0-130Psi.

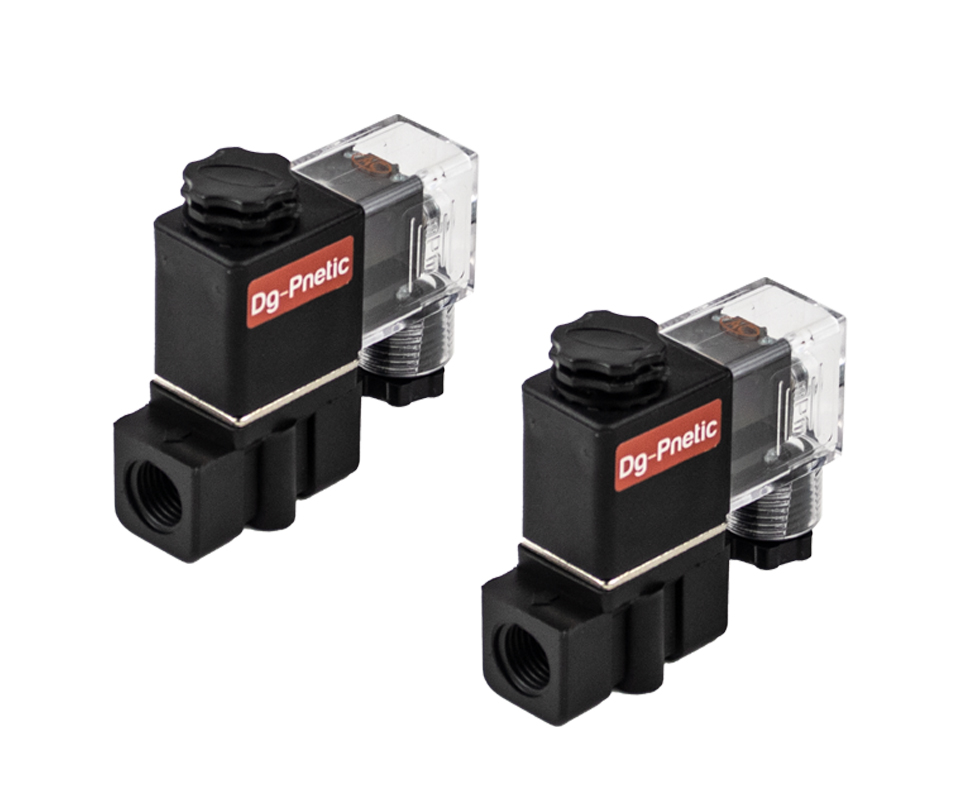

2P Nylon66 electric solenoid valve

* 2P Series Direct-acting 2/2-way solenoid valve, rapid and sensitive switching. Lightweight and compact structure.

* Normally closed operating. Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.
* The valve body is made of Nylon 66. Its coil has a heat resistance classification of Class B. The seals are made of Viton which is suitable for different types of fluid.

Working Pressure: 0-100Psi.

Our water solenoid valve product line

The water solenoid valve is an electro-coil controlled valve which is commonly employed to control the flow of water, hot water and steam. There are various water solenoid valve types, but the main variants are either pilot operated or direct acting.

Key Features to Consider:

Voltage Options: 12V DC, 24V DC, 110V AC, 220V AC
Material: Brass (for durability), Stainless Steel (for high purity or corrosive environments), Plastic (for cost-effective solutions)
Flow Rate & Pressure: Ensure compatibility with system requirements
Water Temperature Range: Some models are rated for hot water use
Seal Material: EPDM (for potable water), NBR, or Viton (for high-temp or chemical resistance)

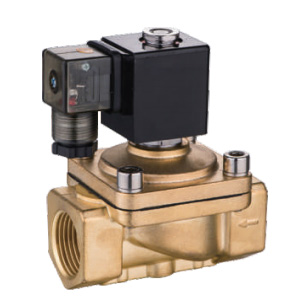

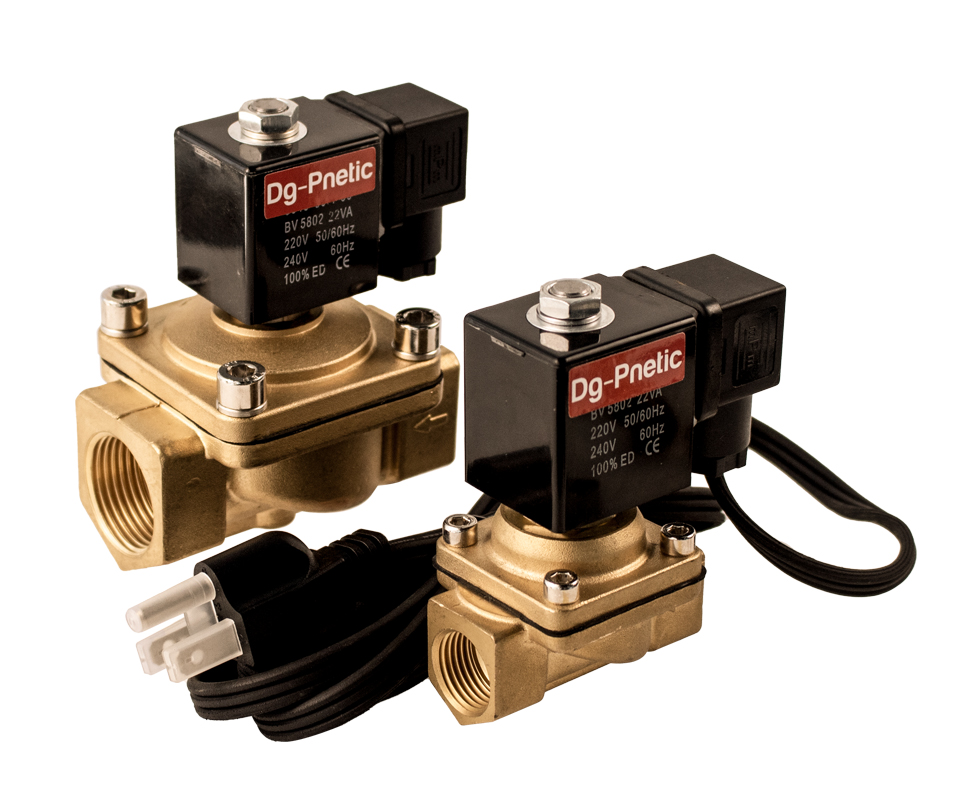

PU220 Direct water solenoid valve

* The PU220 is a 2/2-way (2 port / 2 positions) normally closed solenoid valve designed to stay closed until electrical power is applied.

* Normally open model are available. The valve will stay open until electrical power is applied.

* Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.
* Coil water proof grade: IP65. Viton sealing are available.

Working Pressure: 0-140Psi.

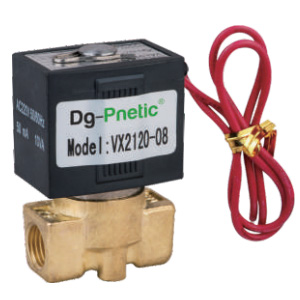

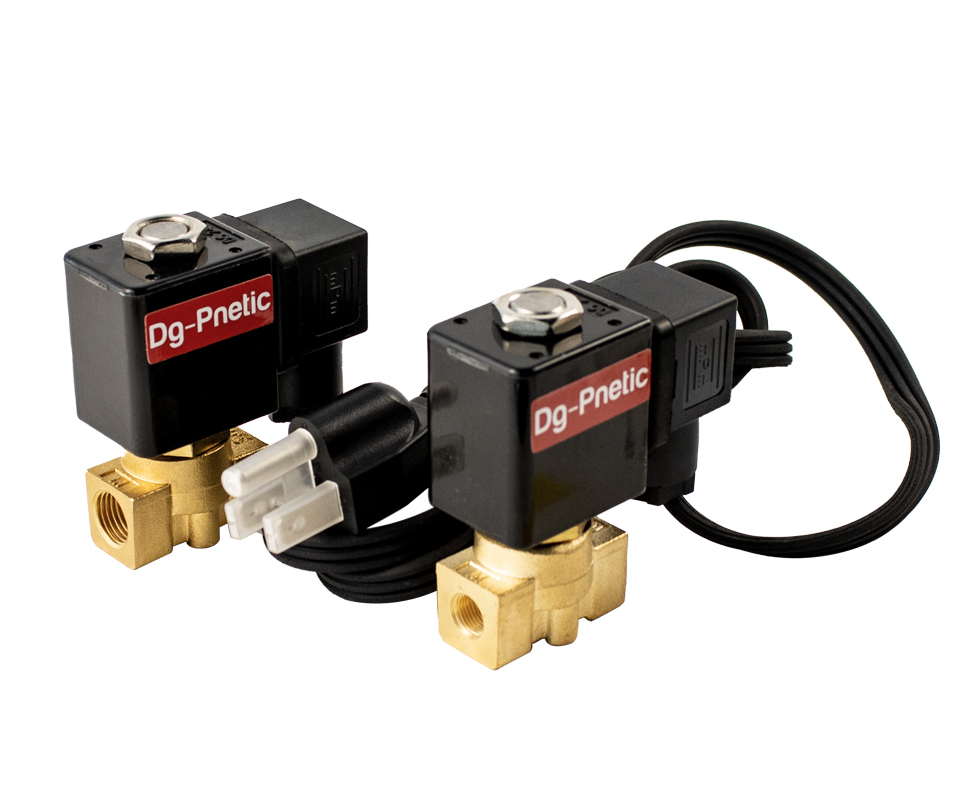

VX2120/30 Direct-acting solenoid valve

* VX2120/30: normally closed 2/2-way solenoid valve, rapid and sensitive switching. Lightweight and compact structure. It is easy to install and dismantle.

* NC or NO operating. Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.
* The valve body is made of brass. Equal to SMC VX2120/2130.

Working Pressure: 0-140Psi. Working temperature: NBR sealing: -5~80℃; Viton sealing: -5~150℃

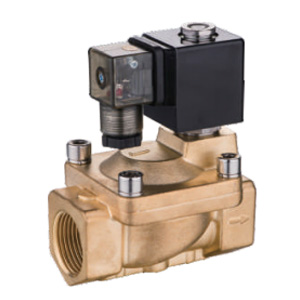

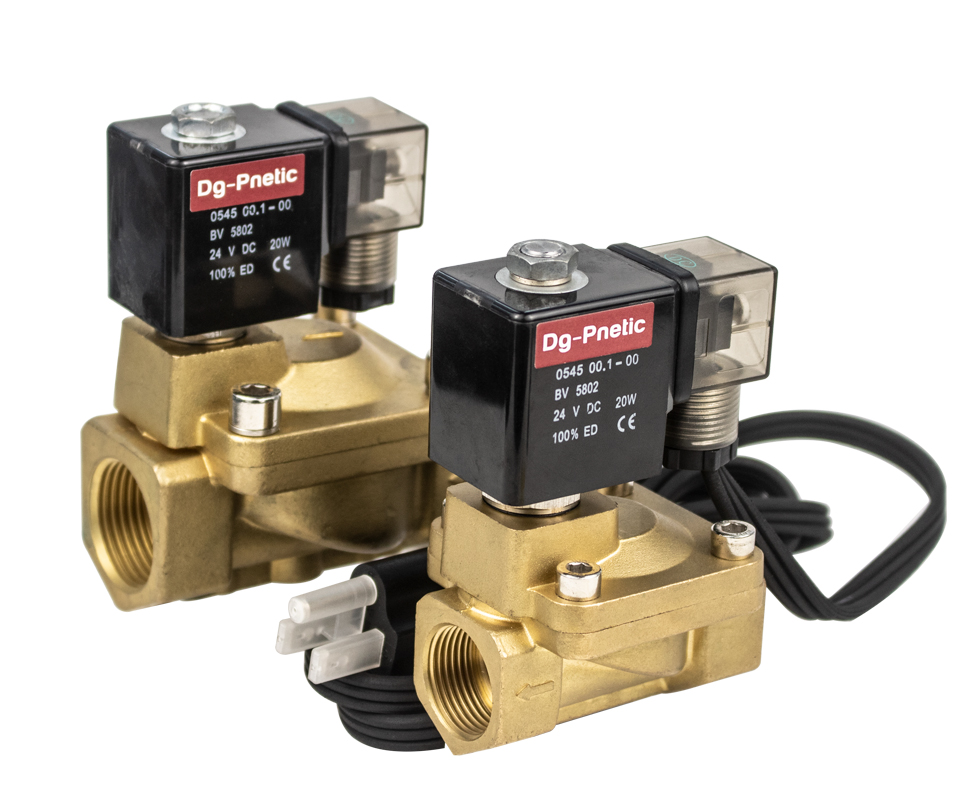

PU225 water solenoid valve

* PU 225 Pilot operated NC or NO 2/2-way solenoid valve. Brass valve body.

NC Model: designed to stay closed until electrical power is applied. The response time: 20 to 50 milliseconds.

NO model: normally open valve will stay open until electrical power is applied.

* Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.
Working Pressure: 0-140Psi. Working temperature: NBR sealing: -5~80℃; Viton sealing: -5~150℃

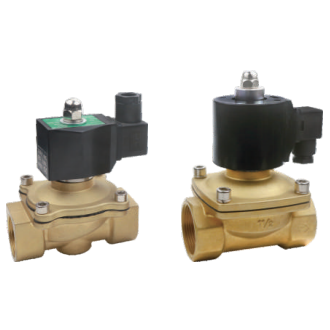

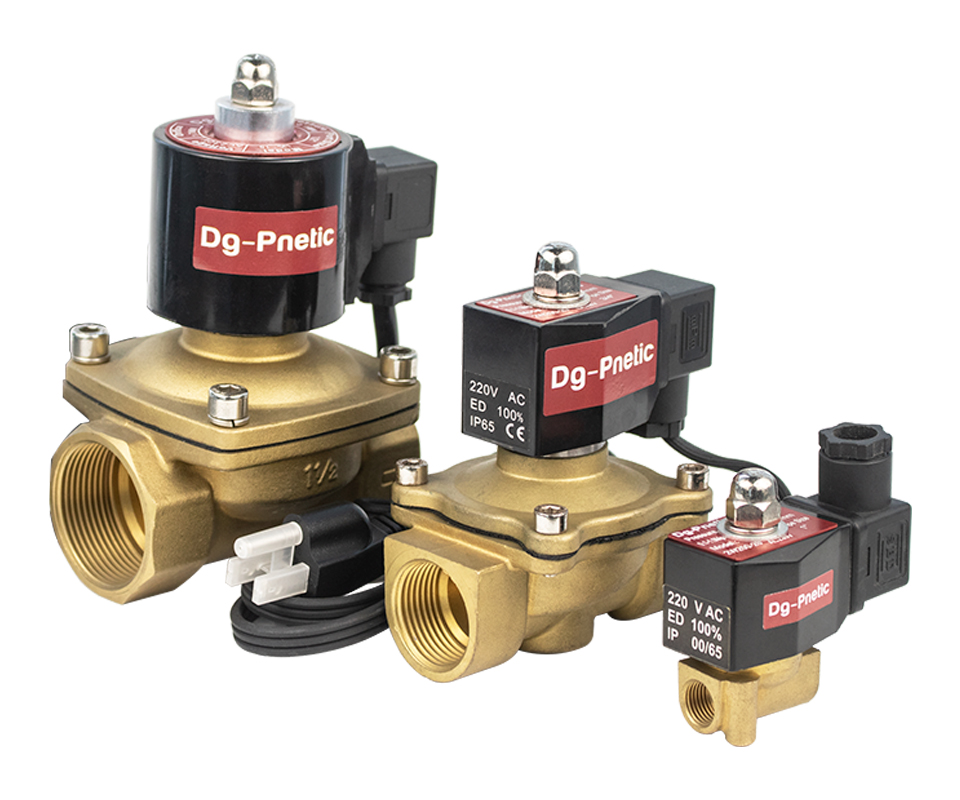

2W Brass electric solenoid valve

* Widely used direct-acting NC or NO 2/2-way solenoid valve, rapid and sensitive switching.

* Available Coil Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.

Coil water proof grade: IP65 and IP67 are both available.
* Material: Brass, stainless steel, copper.

Working Pressure: 0-140Psi. Working temperature: NBR sealing: -5~80℃; Viton sealing: -5~150℃

Our stainless steel water solenoid valve

Stainless Steel Solenoid Valve: is an electrically controlled valve designed to regulate the flow of water using a solenoid (electromagnetic coil). Stainless steel construction makes it ideal for corrosive, high-pressure, and high-temperature applications.

Key Features:

Material: 304, 316 or 316L stainless steel for durability and corrosion resistance. The 304 stainless steel decent choice. 316 or 316L stainless steel are mainly used in the food grade and medical machinery.
Operation: Normally closed (NC) or normally open (NO)
Voltage Options: Commonly available in 12V, 24V, 110V, and 220V
Seal Material: Typically uses PTFE, EPDM, or Viton for different fluid compatibilities
Pressure Range: Varies from 0 to 200+ PSI, depending on the model
Temperature Range: Can handle temperatures from -10°C to 180°C (14°F to 356°F)

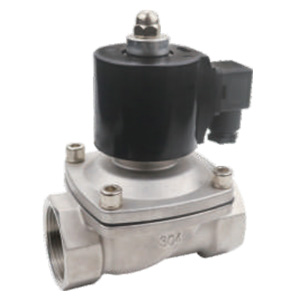

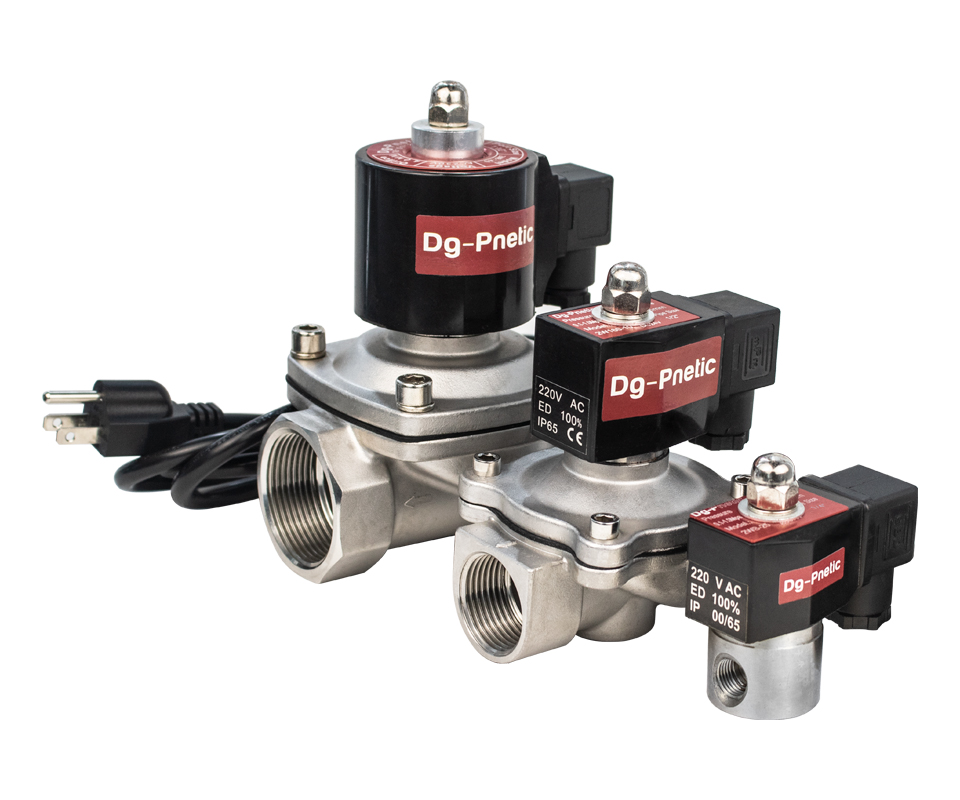

2WB Stainless steel solenoid valve

* Stainless steel direct-acting NC or NO 2/2-way solenoid valve, rapid and sensitive switching.

* Available Coil Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.

Coil water proof grade: IP65/IP67
*Suitable for the usage in the corrosive environment.

Working Pressure: 0-140Psi. Working temperature: NBR sealing: -5~80℃; Viton sealing: -5~150℃

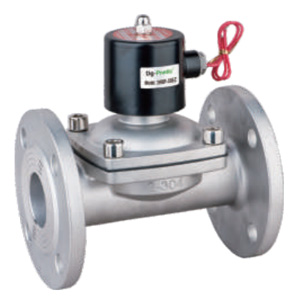

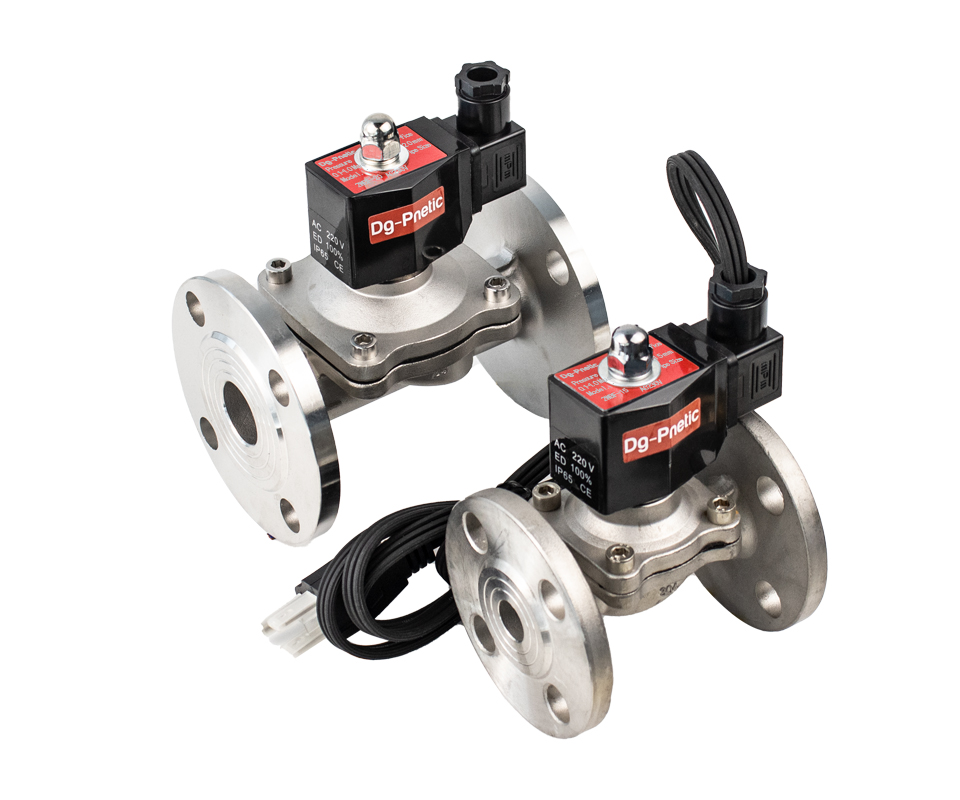

2WBF Flange stainless solenoid valve

* Flange assembled stainless steel direct-acting 2/2-way solenoid valve.

* Available Coil Voltage: DC12V / DC24V / AC24V 50/60Hz / AC110V 50/60Hz / AC220V 50/60Hz.

Coil water proof grade: IP65/IP67
*Suitable for the usage in the corrosive environment.

Working Pressure: 0-140Psi. Working temperature: NBR sealing: -5~80℃; Viton sealing: -5~150℃

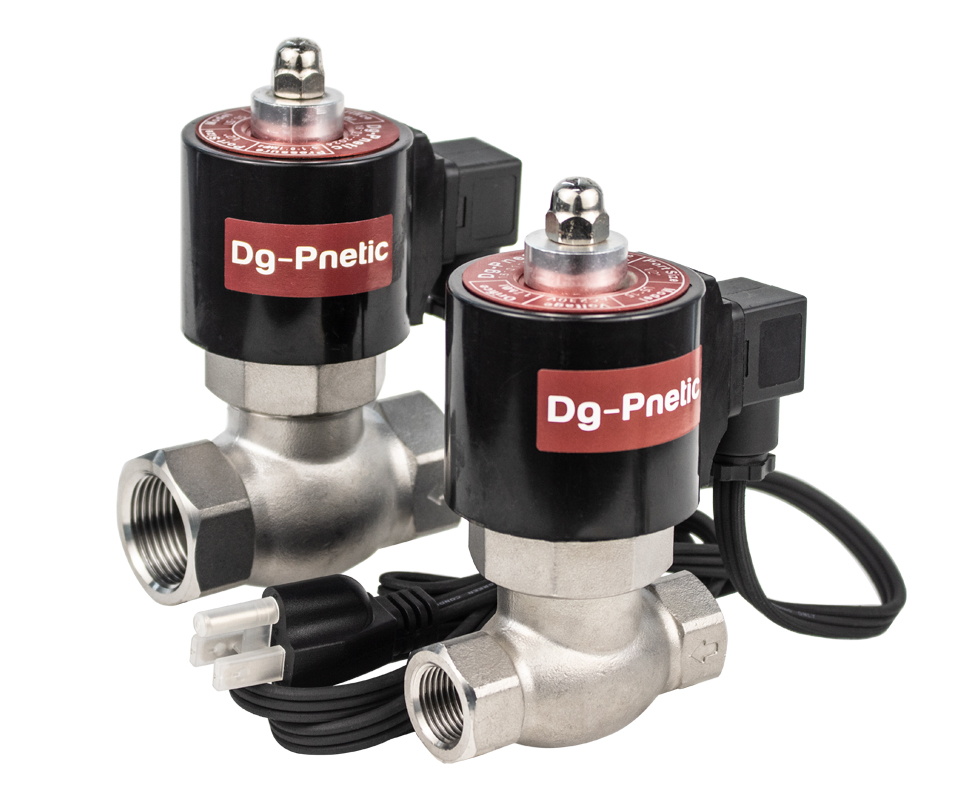

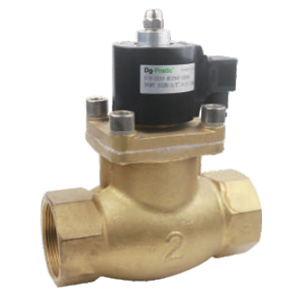

US(2L) Stainless steel solenoid valve

US-S Series: Piston directing model; PTFE sealing element, for the boiled water, steam, and air.

* It’s a electric magnetic coil controlled 2 way valve used to control the steam and hot water flow in the pipe line.

* Due to working with the high temperature medium, the valve adopted piston piloted structure, and assembled with the PTFE sealing elements for the long durability consideration.

Working Pressure: 0-140Psi. Working temperature: -5~180℃

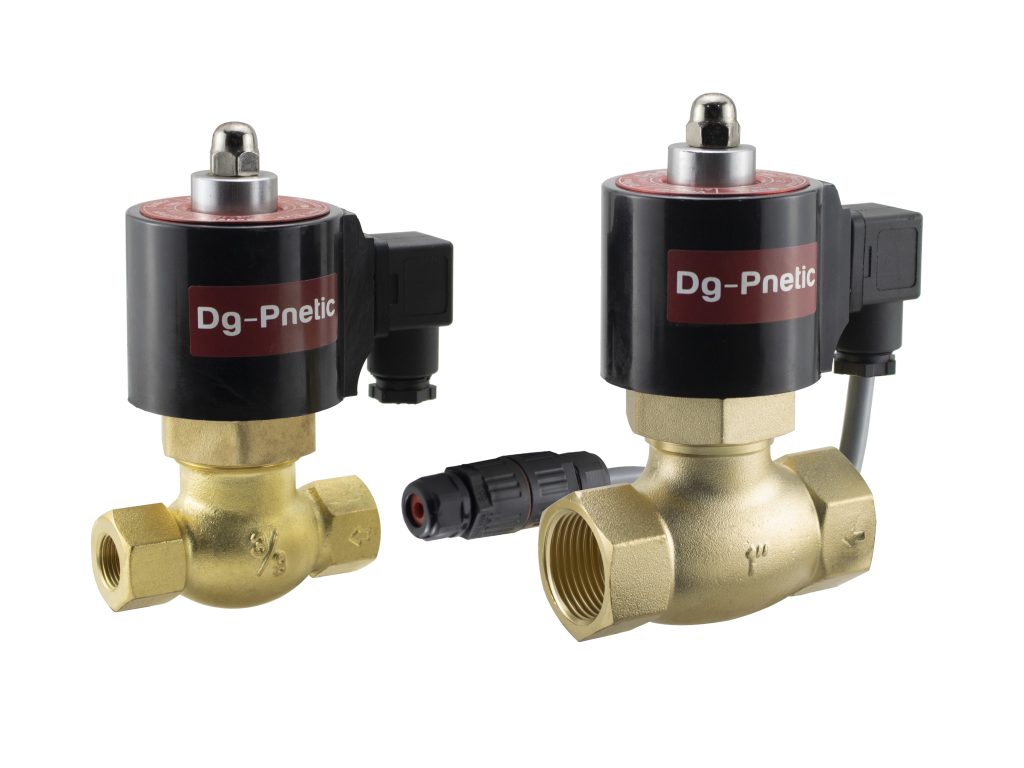

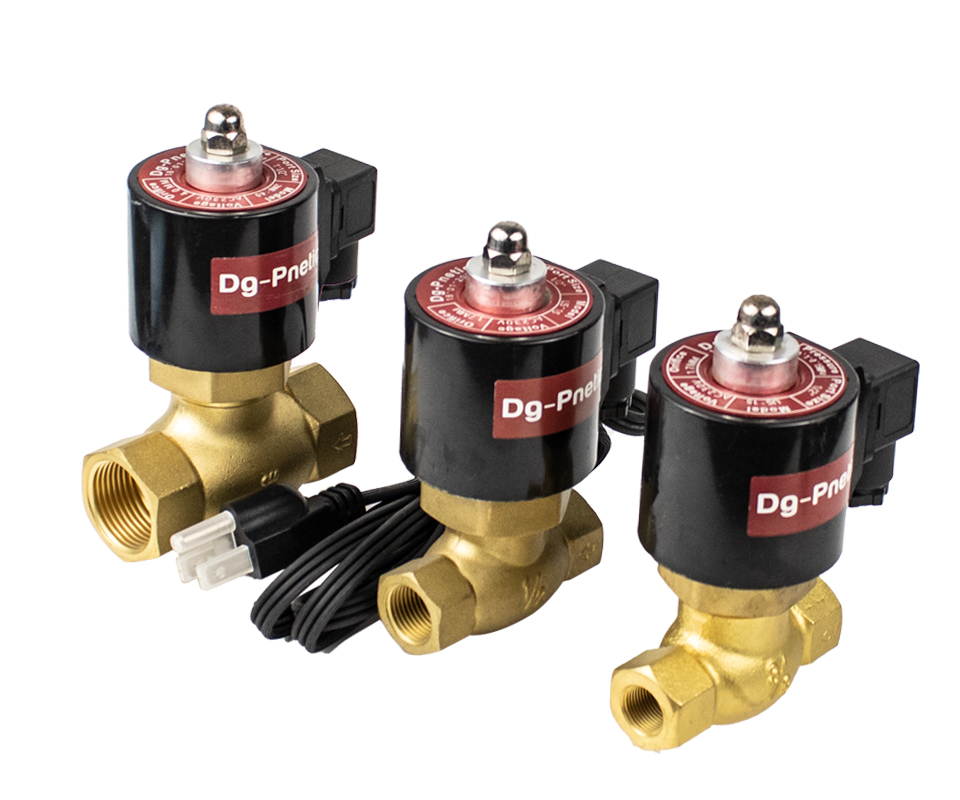

Steam solenoid valve

A steam solenoid valve is an electrically operated valve designed to control the flow of steam in industrial and commercial applications. These valves must be built to withstand high temperatures, pressures, and potential corrosion caused by steam.

Key Features of a Steam Solenoid Valve:

Material: Typically made from stainless steel, brass, or bronze for high heat resistance and durability.
Seal Material: Uses PTFE (Teflon), EPDM, or Viton, which can withstand steam exposure and high temperatures.
Temperature Range: Designed for temperatures up to 180°C – 250°C (356°F – 482°F) or higher, depending on the model.
Pressure Range: Can handle pressures from 0 to 250+ PSI, depending on the application.
Operation: Available in normally closed (NC) and normally open (NO) configurations.
Voltage Options: Available in 24V DC, 110V AC, 220V AC, etc

US(2L) Steam solenoid valve

Electrical Options:

Available in multiple voltage options such as AC220V, AC110V, 24VDC, and 12VDC, accommodating various system requirements.

Performance Specifications:

Operating Temperature: Typically from -5°C up to 180°C (some models are rated for up to 200°C).

Working Pressure: Generally 0.1–1.5 Mpa, with maximum pressures around 2.25 Mpa. Flow Capacity: Offered in different models with varying orifice sizes (e.g., 17 mm, 22 mm, 30 mm, 50 mm) and Cv values to match specific flow control needs.

High pressure solenoid valve

What’s the high pressure solenoid valve?

It’s a electric magnetic coil controlled 2 way valve with brass or stainless steel valve body be used for on/off (open or closed) operation and for diverting control of high pressure liquid and gas media automation systems. High pressure solenoid valve applications include refineries, water supplying, processing systems, offshore oil and gas rigs, petrochemical systems.

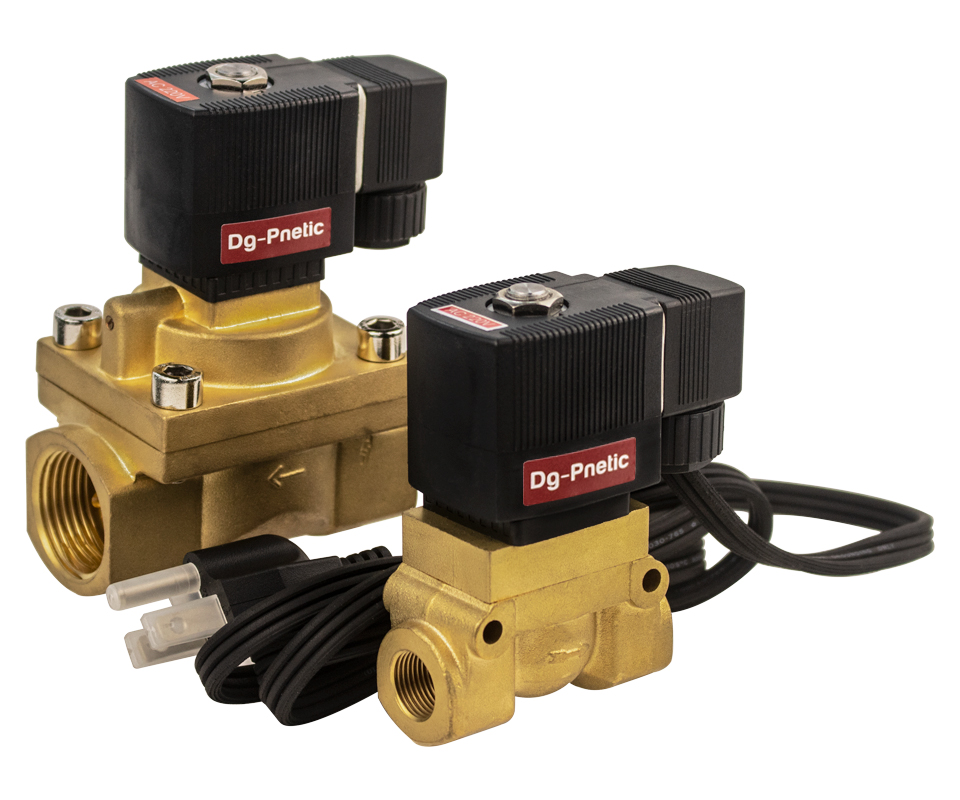

DG523 High pressure solenoid valve

Electrical Options:

Available in multiple voltage options such as AC220V, AC110V, 24VDC, and 12VDC, accommodating various system requirements.

Operating Temperature: Typically from -5°C up to 180°C (some models are rated for up to 200°C).

Working Pressure: Generally 0.3–5.0 Mpa, with maximum pressures around 2.25 Mpa. Flow Capacity: Offered in different models with varying orifice sizes and Cv values to match specific flow control needs.

Electric compressor drain valve

It’s combination of a 2/2 war electric solenoid valve, a timer, and ball valve embedded valve module.

Function of the components

* Elctric Solenoid Valve: used to control the drain pipe opening or closing through the electric signal.

* Timer: automatically control the opening and closing of the valve at predetermined intervals.

* Ball valve: Used to Control the drain pipe manually.

* Strainer: Filtrate the impurity in the water to avoid blocking the solenoid valve.

* Normally, the solenoid valve is direct acting model, with the rapid response and hihg reliability.

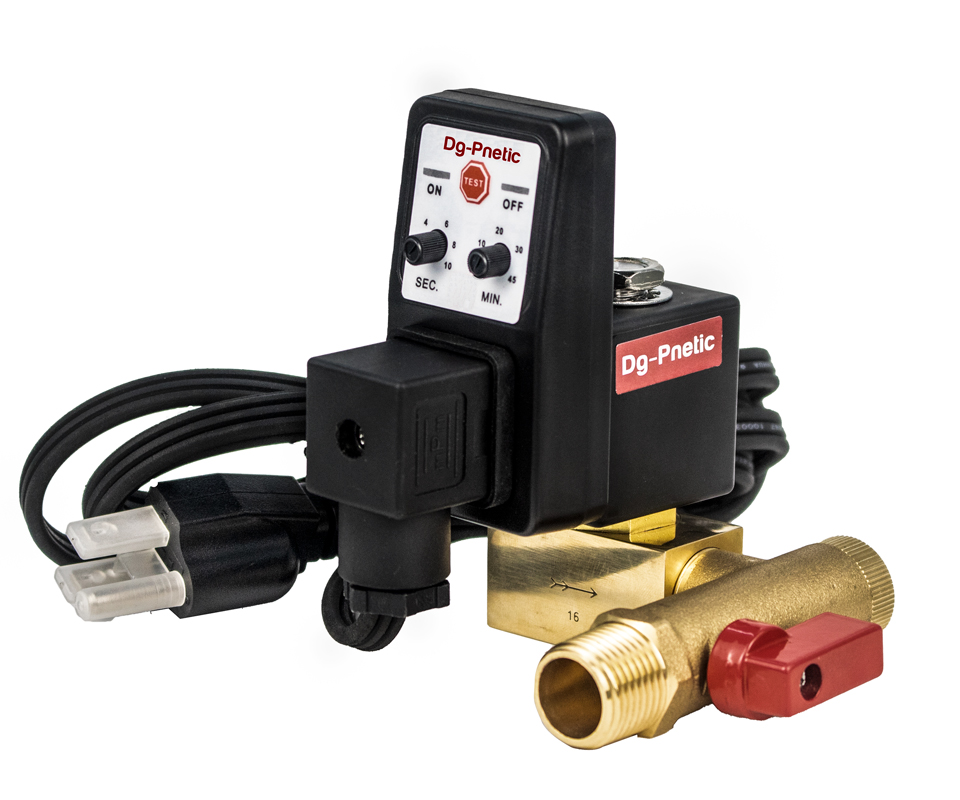

PT Electric auto drain valve

Component: Timer, solenoid valve two ways, strainer, ball valve.

Electrical Options:

Multiple voltage options such as AC220V, AC110V, 24VDC, and 12VDC, accommodating various system requirements.

Operating Temperature: Typically from -5°C up to 70°C .

Working Pressure: Generally 0.1–1.6 Mpa.

Which electric water valve is better for your applications? Pilot Operated vs Direct Acting Operated!

Features of Pilot Operated valves

1. Excellent for very large flow.

As the sysem pressure assists valve diaphragm operation. It could hold bigger diaphragm.

2. Needs minimum pressure differential.

3. Could installed in Higher Pressure system

4. More economical for higher flow values

5. Lower electrical power needed.

6. As utilize the system pressure to open the diaphragm, so need longer response time.

7. In terms of manufacture cost, it’s more economical, as they don’t need the big and expensive coil to actuate.

8. The size is smaller than direct acting valve due to avoid the big and high power coil.

9. As only adopt the low power coil to actuate, it’s more energy efficient!

10. Compared with the direct acting valves, the operate process is more slightly.

11. Widely accepted by the end user and the engineer.

Features of direct acting valves

1. No need the minimum pressure differential when operate.

2. As the valve utilize the coil magnetic force to drive the diaphragm, so more reliable.

3. Lower pressure limit.

4. Lower cost efficiency.

5. Lower power efficiency.

6. Can handle a vacuum pressure of -14.7 psig and also much higher pressure ranges.

7. Designed to cope with particle debris.

8. 2/2 and 3/2 way normally open or normally closed versions.

9. The valve coil must be mounted vertically upward.

Get A Quick Quote

Helpful Link

Customized Product About Payment Fast Delivery (1-6days) Ocean Shipment(25-35days)

About Us Contact Us Product PDF Download

Get In Touch

How To Order Tel: 0086-13867843985 WhatsApp: 008613867843985

Technical Resources

Support & Tech Advice

Electric solenoid valve two ways

What's the electric solenoid valve?

The structure of electric solenoid valve two Ways

1. Pilot Operated

The inner structure

How does electric solenoid valve works?

2. Direct Acting

The inner structure

How it works?

Our compact electric solenoid valve

Key Features:

2V Aluminum electric solenoid valve

2W Brass compact electric solenoid valve

QX Compact electric solenoid valve

2P Nylon66 electric solenoid valve

Our water solenoid valve product line

Key Features to Consider:

PU220 Direct water solenoid valve

VX2120/30 Direct-acting solenoid valve

PU225 water solenoid valve

2W Brass electric solenoid valve

Our stainless steel water solenoid valve

Key Features:

2WB Stainless steel solenoid valve

2WBF Flange stainless solenoid valve

US(2L) Stainless steel solenoid valve

Steam solenoid valve

Key Features of a Steam Solenoid Valve:

US(2L) Steam solenoid valve

High pressure solenoid valve

What’s the high pressure solenoid valve?

DG523 High pressure solenoid valve

Electric compressor drain valve

Function of the components

PT Electric auto drain valve

Which electric water valve is better for your applications? Pilot Operated vs Direct Acting Operated!

Features of Pilot Operated valves

Features of direct acting valves
