How many types pneumatic cylinders there are,and where to find it?

With the decades of development of the pneumatic technology, the engineers had created more than ten types of pneumatic cylinders.

Now we introduce the most frequently-used pneumatic cylinder or pneumatic actuator.

1.Profile & Tie-Rod Cylinders or Actuator

The most commonly standard cylinder in industrial automation system and are high performing, long lasting and with the requested viton seal are able to operate in high temperatures.They provide linear motion,and most of them are double acting.

Because these two cylinders are the most commonly used, we also call them”standard cylinders”. Most types standard cylinder have adjustable cushioning. It’s a important characteristic for the heavy duty work situation.This allows the heavy objects which pushed by the air cylinder will not cause damage to the cylinder or the equipment due to the inertia when it moves to the end of the stroke.

AIRTAC SU Profile Air Cylinder Bore Size 32 To 320mm Double Acting.

It is NO tie rod cylinder. The cylinder barrel is “Mickey Mouse” Shape, Aluminum Alloy Material, good anti-corrosion performance. Compared with ISO15552 standard cylinder, SU series is shorter in the same stroke status. Adjustable buffer design insure the cylinder suiting for different load level.

AIRTAC SUF Pneumatic Piston Cylinder with Solenoid Valve Work Bore Size 32 To 320mm Double Acting Type. Combined by the SU cylinder and appropriate solenoid valve. Individually control, no need for extra control valves. Installation time and space saving; suitable for decentralize installation in large system.

AIRTAC SC Tie-rod Cylinder for Heavy Duty Work Bore Size 32 To 450mm Double Acting Pneumatic Cylinder. The seal of piston adopts two way seal structure. The tight dimension has the function of the grease reservation. Also designed with adjustable buffer. The cylinder barrel and front/rear cap is assembled by tie rods with the high reliability. So mostly they were used in the heavy duty conditions.

SCF Tie-rod Pneumatic Cylinder With Solenoid Valve Work Bore Size 32 To 100mm Double Acting Type. For Standard Cylinder:Use 4M210 Namur valve for bore 32,40&50;4M310 Namur solenoid valve for bore size 63,80,100. Tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with the high reliability.Individually control,no need for extra solenoid valves.

SI ISO 15552 Double Acting Pneumatic Cylinder Bore Size 32 To 125mm. According to ISO6431 standard, VDMA24562 standard and DIN24335 standard,equal to FESTO DNC series.The cylinder seal of piston adopts two way seal structure.The tight dimension has the function of the grease reservation. Normal bore size from 32mm to 150mm, stroke from 5 to 1000mm. It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with the high reliability

SIF Pneumatic Ram Cylinder With Solenoid Valve Work Bore Size 32 To 100mm Double Acting Type. For ram cylinder:Use 4M210 Namur valve for bore 32,40&50;4M310 Namur solenoid valve for bore size 63,80,100. It is NO tie rod cylinder. The cylinder barrel is Aluminum Alloy Material, good anti-corrosion performance. Individually control,no need for extra solenoid valves.

SCT Tie-rod for Heavy Duty Tandem Cylinder Work Bore Size 32 To 320mm Double Acting Type. The seal of piston adopts two way seal structure. The tight dimension has the function of the grease reservation. It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with the high reliability. The piston rod can be positioned in several position in whole action process.The buffer adjustment of cylinder is smooth and steady

DNC ISO 15552 Profile Double Acting Cylinder Bore Size 32 To 125mm Equal To FESTO DNC Double Acting Cylinder.VDMA24562 standard and DIN24335 standard,equal to FESTO DNC series. The buffer adjustment of cylinder is smooth and steady, Aluminum Alloy Material barrel, good anti-corrosion performance.

QGA and QGB series big bore size cylinder are commonly used in the pneumatic industry.

QGA series cylinder without buffer. After years of manufacturing and continuous improvement, it has good performance and reliable quality and widely used in lot of field.

QGBZ series heavy duty cylinders are single piston double acting type cylinder with adjustable cushion on both sides. It can replace QGB series and with compact size.

The main material is the carbon steel, which is durable and suitable for working under harsh conditions.

2.Mini cylinder ,Sub-Miniature Cylinder, Micro air cylinder

This kinds of cylinders are ideally suited to lighter duties and in lower force applications compared with standard cylinders, and are available as single acting or double acting.Micro-Air Cylinders are ideal for small part positioning, clamping, and ejecting. They are the perfect choice for appplications where small bore, medium duty, repairable cylinders are preferred. And they are suitable for operations without externally applied lubrication.

Mini cylinder,Micro air cylinder,Sub-Miniature cylinders have the same structural features as standard cylinders, which are also composed of caps, piston and rod, cylinder barrels, and seals. Mini cylinders also function in two ways: double-acting or single-acting. Just their dimension is small.

What is the Mini cylinder？

Mini cylinder be with the same structural features as standard cylinders, could be double-acting or single-acting. Just their dimension is smaller than the profile cylinders. But bigger than the Sub-Miniature cylinder and Micro cylinder. And most of the mini cylinder are with round barrel.

AIRTAC MA Series Stainless Steel Round Pipe Mini Cylinder Bore Size 16mm To 63mm Double Acting And Single Acting For Choosing. Front cover has fixed bumper which can reduce the impact of direction change of the cylinder. There are several models of back cover, which makes the installation of cylinder more convenient. The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance.

MAL25*50 Aluminum Round Pipe Small Air Cylinder Bore Size 20mm To 40mm Double Acting And Single Acting For Choosing. Front and back cover and cylinder tube are connected by threads. Front cover adopts self-lubrication bearing guide that has good performance of lubrication and guide. There are several modes of back cover which makes the installation of the cylinder more convenient.

MI ISO 6432 Small Pneumatic Cylinder Bore Size 8mm To 40mm Equal To SMC CD85 Series. In accordance with ISO6432 standard (8mm – 25mm bore size) ,Equal to SMC CD85 cylinder. Front and back cover owns fixed bumper pad which can reduce the impact of direction-change of the cylinder. There are several modes of back cover, which makes the installation of cylinder more convenient. Cylinder and mounting accessories with several specifications are optional.

SMC type CJP pin cylinder Bore Size 6 mm To 16 mm. They can be mounted from 4 direction, and convenient to install and use. The front end of the cylinder is designed with sidestep, centring can be done easily. With magnet type is with the feature of position sensing. There are magnetic switch slots around the cylinder body, which is convenient to install inducing switch.

SMC type CJP Pin cylinder bore size 6 mm to 16 mm. These threaded pin air
They are with very compact, small size and light weight. Multi cylinders can be integrated to save room. Mounting accessories are not necessary.

SMC standard CM2 series cylinders are with the single acting and double acting design.

They are compact, lightweight and offer high performance. The piston seal and rod seal design provide excellent ability. Transparent auto switch provides visibility of the switch.

SMC type NCJ2 miniature cylinders available in single acting and double acting. All of the cylinders adopt the stainless steel tubing and stainless steel rods. The bore size from 6,10,16mm and standard stroke lengths up to 8”. We supply the basic, foot, front flange and double rear clevis mounting options.

SMC type CJ1 series micro cylinder is good choice for achieving small, delicate tasks. The barb on the cylinder cap will accept either millimeter or inch size tubing. The fitting on the rod cover side has been provided with a variable piping direction. Don’t allow space constraints to cramp your design. Available with a basic mounting option.

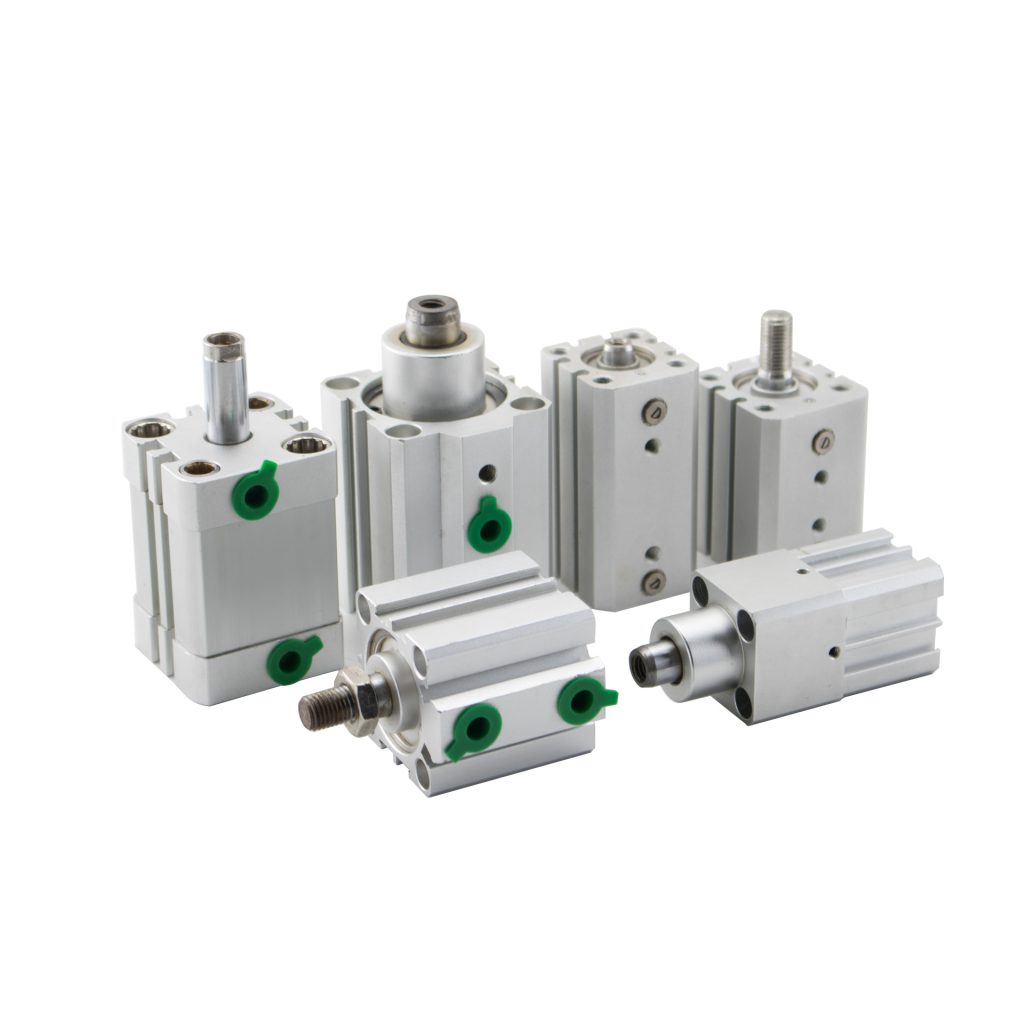

3.Compact Cylinders or Actuator:

Compact air cylinder offers highly engineered, reliable and innovative solutions with thesmallest footprint to force ratio, for a wide variety of industrial applications, especially for automation equipment that requires high space utilization, and small tooling.

It’s featured a compact design for applications where cylinder length is critical. The

self-lubricating nitrile piston seal increases cylinder performance and provides the best actuator life expectancy. An integral slots for flush mounting of sensor switch.

What is the compact cylinder?

Compact cylinders have the same structural features as standard cylinders, which are composed of end caps, pistons, cylinder barrels, and seals. Piston rod cylinders function in two ways: double-acting and single-acting. Double-acting cylinders use compressed air to power both the extend and the retract stroke (moving the rod back and forth). This arrangement makes double-acting cylinders ideal for pushing and pulling loads. Just their dimension is smaller. Compared to ISO Profile cylinders, their dimension is reduced by 60%. But it can have the same bore and force output. Most of their stroke are not too long due to the space request. The original intention of this kind of cylinder is to reduce the space occupied. The reason of choosing this kind of cylinder is that the automation designer have to save space.

ACE Pneumatic Compact Cylinder Bore Size 12 Mm To 125mm Equal To FESTO ADN Series Compact Cylinder. In accordance with ISO21287 standard, the mounting size is vogue. The cylinder body connects with the threads of the front and back cover, forming high strength and convenient maintenance. The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability. Compact structure can effectively save fifty percent installation space with ISO15552 standard cylinder. There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.

SMC type CQ2 compact cylinder is the widely adopted pneumatic cylinder. It is available in 15 type bore sizes from 12mm to 200mm. It comes standard with male or female piston rod threads. 42 standard options make it one of the most versatile cylinder series on the market. For mounting flexibility, it is possible to mount auto switches on any of the 4 surfaces.

SMC type CQS Compact cylinder is ideal for machine designs with small space requirements The “D-M9” auto switch will not protrude from switch mounting groove. Square body shape gives you flexibility for designing machine. Cross-section of a cylinder tube is the same configuration regardless. of w/ switch or w/o switch. Auto switch mounting allows for flexible designing requirements. 2 ways basic mounting: Through-hole or both ends tapped.

SMC type CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm bore sizes. Non-rotating accuracy is 0.2 or less

SMC type RQ compact cylinder meets the demands for reduced shock, noise reduction and improved repeatability at the stroke end. Unique air cushion construction with no cushion ring.

AIRTAC type SDA compact cylinder DA Compact Cylinder Bore Size 12 Mm To 100mm.

Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable. The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability. Compact structure can effectively save installation space. There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch.

FESTO type ADVU compact cylinder Single-or double acting cylinder with a wide range of mounting options. 50% less installation space than comparable ISO cylinders to ISO 15552 Wide range of variants for customized applications Piston rod with internal or external thread Magnetic piston for position sensing

SMC type CU free mount cylinder saves space and allows direct and precise mounting. It is available in 6mm to 32mm bore sizes with stroke lengths up to 50mm. Options include auto switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, double rod, single and double acting, and rubber bumpers standard.

SMC type CUJ miniature free mount cylinder is a space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. Options include auto switch capabilities, double and single acting, mounting from 4 directions.

3. What's The Guided Cylinder

The guided cylinder is composed of a guide rod or slider parallel to the piston rod and the cylinder as a whole, or a cylinder is composed of two parallel pistons and piston rods. In the double-piston rod cylinder, the heads of the two piston rods are mounted by a flange, which prevents the rotation of the piston and obtain double output force at the same time.

This cylinder has a compact structure, high guiding accuracy, and can withstand large lateral loads and moment of force. It can be used to withdraw, lift and position the work piece on the conveyor line.

For the guide rod, normally there are two types rail bearings, one is the sliding bearing and ball shaft. The sliding bearing type has good abrasion resistance and can withstand lateral load more than 2 times larger than that of the stopper cylinder. It is suitable for use as a stopper. The ball bearing type can make high-precision smooth movement, has a long life, and is suitable for moving and lifting work pieces on the conveyor belt.

AIRTAC type TN series dual rod cylinder with the compact design, and two piston rod design double the output force. It has two sides installation choice and with four magnet switch slot. Embedded installation and fixation mode save the space. Dual rod design offer the good resistance to bending and twist moments.

SMC type CXS dual rod cylinder is suitable for pick and place application. Ball bearings and the slide bearings are standard for all series. Twice the thrust non-rotating accuracy ±0.1°.It can be mounted on three faces. And with the adjustable stroke device. The new designed cylinder could be with air coushion.

SMC type CXS dual rod cylinder (Double rod) Dual-Rod Cylinder Double Rod Type CXSW Series that can be mounted from 3 directions. Dual-rod cylinder with guide function that is suitable for pick and place applications, etc. Auto switch can be installed from 3 directions. Unique air cushion mechanism with no cushion ring.

SMC type MGP guide rod cylinder is designed for high side load applications found in material handling, lifting and stopping. The cylinder utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body. As the stroke length increases, so does the bearing length, thus enhancing the cylinder’s load bearing capacity. Order made options for this series include adjustable air cushions, heavy duty guide rods, copper free, high temperature, and low speed.

SMC type MGG guide cylinder integrates a round body cylinder for its power source with external guide rods to isolate the load bearing from the movement of the actuator’s rod and seals for a compact and light weight unit. The stroke adjustment (up to 50 mm) can be either on the extend or retract cycle. It is enhanced with shock absorbers at the end of stroke for maximum kinetic energy absorption. Non-rotating accuracy ranging from +/-0.02° for 100 mm bore to +/-0.07° for 20 mm bore.

Pneumatic slide cylinder or slide table cylinder

Slide cylinder refers to a cylinder with precise guiding, bracing and driving functions, also known as a guiding drive device. Generally, it integrates a standard cylinder and a guiding device, adopts a modular structure design, and uses a standard connecting plate to combine different types and specifications of sliding table into X-Y axis coordinates or X-Y-Z three-axis coordinate motion.

The sliding table cylinder is guided by a ball bearing, and a magnetic ring is installed on the piston,which could be inducted by the sensor switch.Normally set a hydraulic shock absorber at the end of the stroke to reduce the vibration.
The slide table cylinder has the characteristics of high guiding accuracy, torque resistance, strong load capacity, stable work, simple and convenient assembly, and is widely used in detection, grasping, feeding, positioning, assembly and machining in pneumatic automation systems. It can be used as the body of the pneumatic manipulator, the driving device of the arm, the mechanical sliding table, etc.

CKD type STM slide table cylinder is a super compact guided cylinder that provides high

freedom in mounting and abundant variations, with attention to ease of use and of selection.

Dual piston rod structure makes the cylinder have better bending and torsion resistance.With external buffer device at both ends. Bore size :10,16,20,25mm。

SMC type MXH compact slide table: the allowable moment improved by up to 240%. With new high rigidity linear guide. The weight has been reduced by incorporating a new high rigidity linear guide and piston. Standard rubber cushion at both ends. Piping is possible in 3 directions.

SMC type MXS air slide table is a precision slide table integrated with guides and rails combined with cross roller bearings to isolate the load bearing from the movement of the dual rods and piston seals. Rubber bumpers or shock absorbers stop the slide table and can be paired with a stroke adjuster for precise positioning. The end lock option prevents the slide table from dropping in vertical applications, enhancing safety in the event of air pressure loss.

SMC type MXQ precision air slide table is with smart design. It combines the dual rod cylinder and the circular linear guide. The dual rod cylinder design endows 2 times force output for the large load. Adjustable travel device ensure the accurate stroke precision. Manage switch can be installed on the bottom face.

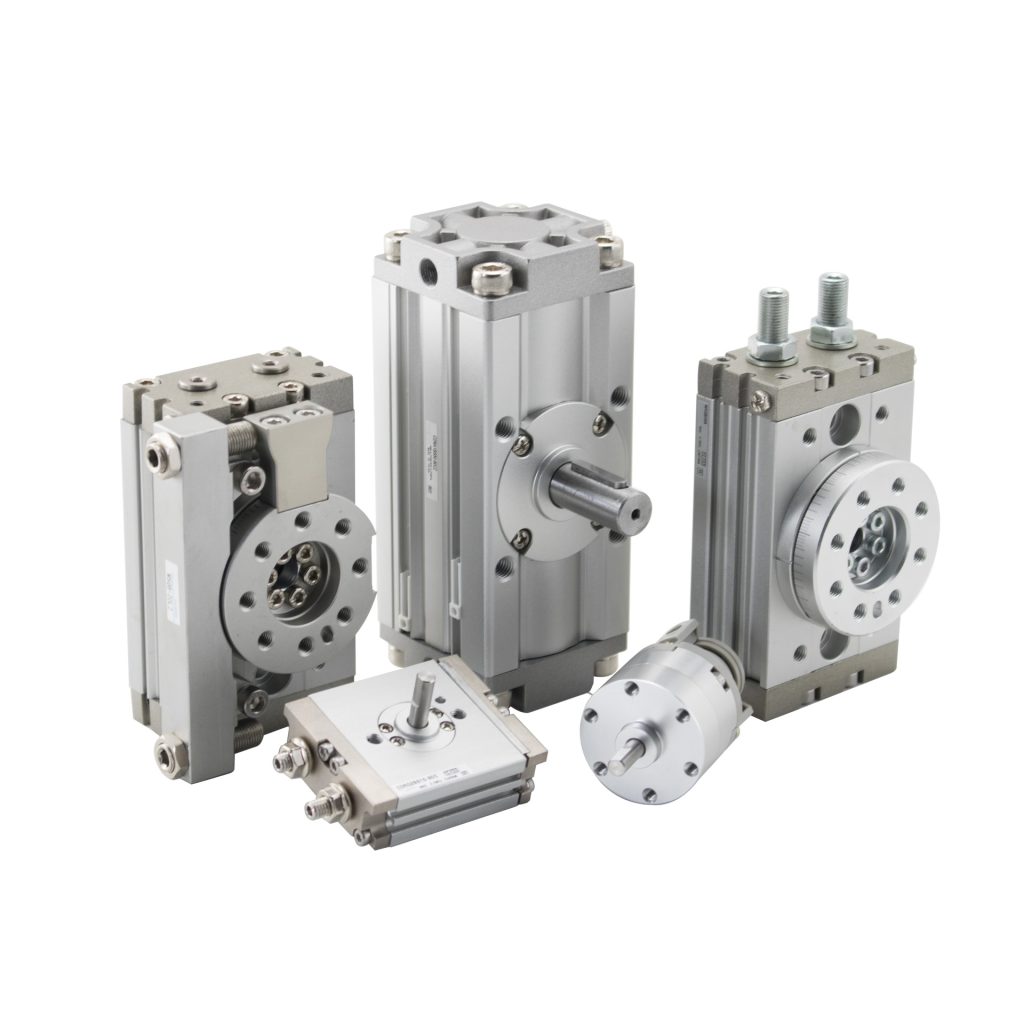

4. Pneumatic rotary actuator or pneumatic rotary cylinder

The typical rotary cylinder is a device that converts a double-acting linear motion or a single acting linear motion to the rotary motion. It was called as pneumatic rotary actuator or rotary cylinder.

Pneumatic rotary actuators are highly reliable, efficient and safe sources of motion control that use pressurized air to convert energy into rotary motion. They’re especially appropriate for the repeated opening and closing of valves and other industrial applications where the use of electricity may cause a fire or ignition hazard. It effectively turns the valve into a remote-controlled valve from a centralized control point. Common valves, like butterfly or ball valves, only require ¼ of a circle to open/close. Therefore, the motion on the actuator is restricted for movement between 0 and 90-degrees. A common design of a pneumatic rotary actuator with a quarter turn.
Pneumatic rotary actuators have several different names, including pneumatic rotary cylinders, air rotary cylinders and air rotary actuators. Each of these terms is synonymous with the other, as they all identify the device as air pressure based.

SMC type MRHQ rotary gripper suitable for holding and reversing work pieces on transfer lines. The compact integration of gripping and rotating functions eliminates the peripheral

piping and wiring of the previous product (rotary table + adapter + air gripper). The length of the MRHQ series has been reduced by approximately 20% compared with the previous products.

SMC type MSQ rotary cylinder is ideal for material transfer applications. Adopted high precision ball bearing insured the accurate operation. It’s easy to installed and could be with the external shock absorber. The seven sizes are 10, 20, 30, 50, 70, 100, and 200 with rotational adjustments from 0-190 degrees, and auto switch capability.

Additional features include a hollow shaft and direct load mounting possibility.

SMC type CRA1 rotary actuator is a widely used rotation power source. It adopts the

rack and pinion structure which insure the work precision. Bore size is from 30mm to 100mm, and with the angle adjustment ability.

SMC type CRQ2 rotary actuator is a light weight rotation power source. Also

adopted the rack and pinion mechanism which insured the high moving accuracy. It’s aperfect choice for the small space application.

SMC type CRB2 vane drove rotary actuator is a very light weight rotation power

source which is suitable for transport the smart and light weight parts. There are basic type and flange type design for the convenient installation. For the rotating force consideration, there are two vanes style and one vane style for choice.

5. What's The Rodless Cylinder

A rodless cylinder is a pneumatic device capable of moving a load in a linear path

with compressed air. But the load moves directly with the piston through a link block thatmoves with the piston.
When the stroke of the cylinder is overlong, the use of a cylinder with a piston rod easily causes the piston rod to bend and deform. Therefore, a piston ess cylinder is oftenused to solve this problem. The occasions where travel and installation space are restricted; for example, pushing in and moving work pieces, opening and closing of mechanisms, lifting of objects, door control, and material conveyance.

They do not have the cylinder piston rods as ordinary cylinders, but use the pistons to directly or indirectly connect the internal actuators, and then the pistons perform directlyor indirectly to realize linear motion of the objects. This kind of cylinder has the biggest advantages of simple structure and saving installation space, and is especially suitable for the occasions of small stroke and long stroke.

Selection consideration
The following criteria should be considered while selecting a rodless cylinder:
Stroke speed: This is the speed at which the piston moves within the cylinder. This would depend upon the air pressure supplied at each port and the load.
Carrier Load: The carrier must be able to support and move the mounted load safely and efficiently and align the rod axis with the load and direction of movement when connecting Dead length: Ensure sufficient space for installing maintenance activities.
Stoke: Use the product within the limits of the maximum usable stroke. The piston rod will be damaged if operated beyond the maximum stroke.
Air pressure: As the piston is driven my compressed air, there must availability of constant air pressure, and filtered air supply.
Bore Size: Bore size can be chosen according to the capacity range required for the application. For a cylinder to perform at maximum capacity, larger bore size should be considered.

SMC type CY3B rodless Cylinder – It’s a basic type magnetically coupled cylinder. Adopt industrial strength magnets located in the piston and external carriage to form a single unit that will travel when actuated with air pressure. The CY3B series has resin based lube retainers installed on the dust seal to more evenly distribute lubricant for a reduction in minimum operating pressure. 70% longer wear rings will distribute a side load over a larger contact area for improved bearing performance. Please note the CY3B must be used with an external guide to support the load.

SMC type CY1S rodless Cylinder-magnetically coupled style. The cylinder assembled with the cylinder guide and the external shock absorber. Lube-retainers are mounted on the internal and external surfaces of the cylinder tube to maintain lubrication. – The adjustment bolt improves stroke accuracy/repeatability.

SMC type CY1L rodless Cylinder-magnetically coupled style, can be used in many diverse environments. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application.

6. Pneumatic grippers and pneumatic clamps.

What’s the gripper?

In a short, grippers are devices that drived by the pneumatic,electric,or hydraulic power to actuate the jaws clamping or slackening to pick up or place down a objects .The grippers sometimes are designed just like human hands, complete with five fingers,four fingers, two and three fingers, most of the grippers shaped like claws.

What’s the pneumatic gripper ?

It’s a type of gripper which the jaws or fingers were actuated by the pneumatic cylinder. The cylinder consists of a piston and rod moving inside a closed barrel, designed to move in a straight line to deliver linear motion. And it is drived by compressed air. The jaws or fingers were assembled on the cylinder piston rod by gear device or the lever structures.When the cylinder rod is pushed to contract or extend, the fingers are opened or clamped to grasp the object.

Where the pneumatic grippers were used ?

Normally were combined with a collaborative industrial robot arm,or mechanical arms topick up and hold objects and completed the transport task. Most time ,it’s the automatekey processes, such as inspection, assembly, pick & place and packing finally.

They are positioned at the end of the arm and their abilities allow you to combine the

strength of an arm with the dexterity of a hand. This combination opens up a huge range of possibilities for material handling with cobots, from stacking large boxes to handling tiny, delicate electronic components.

The Pneumatic gripper is a key component of modern manipulators. The air gripper hasthe following characteristics.
① All the structures are double acting, which can realize two-way grasping, automatic centering, and high repeat accuracy.
② The holding torque is constant.
③ Non-contact detection switches can be installed on both sides of the cylinder.
④There are various installation and connection methods.

SMC type MHZ2 cylinder is a standard type parallel air gripper, widely used in the robotizationsystem. A linear guide provides high rigidity and high accuracy. Bore sizes from 10mm to 40mm · Double acting and Single acting available · Auto switch capable.

SMC type MHY2 cylinder is a compact 180-degree angular gripper. Its size and massallow for small, lightweight tooling, while delivering large gripping forces via piston/cam design. The MHY2 gives you maximum installation flexibility with mountingoption, 4 sides and recessed auto switch grooves on either side of the gripper.

SMC type MHC2 cylinder is the angular air gripper with the double acting and singleacting design. The bore size is from 10mm to 25mm. They gives you maximum installation flexibility with mounting options on 4 sides and recessed auto switch grooves on either side of the gripper.

SMC type MHL2 gripper cylinders are designed for applications that require a wide travel range of gripper fingers. It is ideal for gripping many different sized parts. Finger motion is synchronized by a rack-and-pinion mechanism. The double piston construction creates a compact gripper with large holding force. Available in bore sizes 10, 16, 20, 25, 32 and 40.Axial mounting or lateral mounting options available. Auto switches can be integrally mounted.

SMC type MHT2 toggle gripper cylinders with its newly designed cylinder body, allows small auto switches to be mounted on 4 surfaces. When the gripper fingers are

closed, the toggle mechanism is actuated to produce a strong and stable holding force. This toggle mechanism will hold, even when air pressure drops. The MHT2 is easy to maintain, and all external parts are treated to resist corrosion. Threaded mounting holes in the grippers body and finger housing allow a variety of mounting positions.

SMC type MHW2 gripper cylinder is ideal for applications where saving space is a

necessity. In addition to its compact size, each one of the two fingers, synchronized bya rack and pinion, rotates back perpendicular to the gripper. In this position, the

MHW2 will only require clearance for the body. While the fingers are retracted at a 180-degree angle, the gripper can be moved in an X-Y plane to the work.

SMC type MHF2 gripper cylinder with the lower profile design to saves space,

reduces bending moments and improves accuracy with smooth operation. Available with

three standard stroke lengths (short, medium, long) for each bore size. Bore sizes: 8, 12,16, 20 mm Opening/closing stroke range: 8 – 80 mm Adjustable stroke option. Auto switch capable.

SMC type MHS2, MHS3, MHS4 parallel gripper cylinder are with the compact design, suitable for the application in the narrow space. There three types, MHS2 be with two fingers, MHS3 be with three fingers, and MHS4 be with four fingers. Bore size from 16mm-125mm. They are widely used on the robot arm.

AIRTAC type ACK twist clamp cylinders are widely used in the automobile industrywhich is normally used to hold the parts in the mould. Three-slots guide structure insure the high precision. There are single acting type and double acting type for choices.

SRC twist clamp cylinder is a standard fixation component with the good cost performance.It’s with the double acting design and with the rubber cushion.

AIRTAC type QCK rotary clamp cylinders It can be used on welding fixture, the QPQ

surface treatment prevent piston rod damage by welding slag; better than chrome plated piston rod. The front cover with stainless steel dust scraping ring, can keep the dust and welding slag out, and protect cylinder internal parts. Strong magnet is optioned for 32mm to 63mm bore size, which can be used in high magnetic fields.
SMC type CK1 clamp cylinder be with easy mounting design and available in two

styles of clevis widths (16.5mm, 19.5mm). It is a non-lube, compact, lightweight

cylinder with a built-in speed controller. They are available in 3 bore sizes with stroke lengths up to 150mm. Options include easy speed adjustments, rod attachments and Auto-switch capabilities.

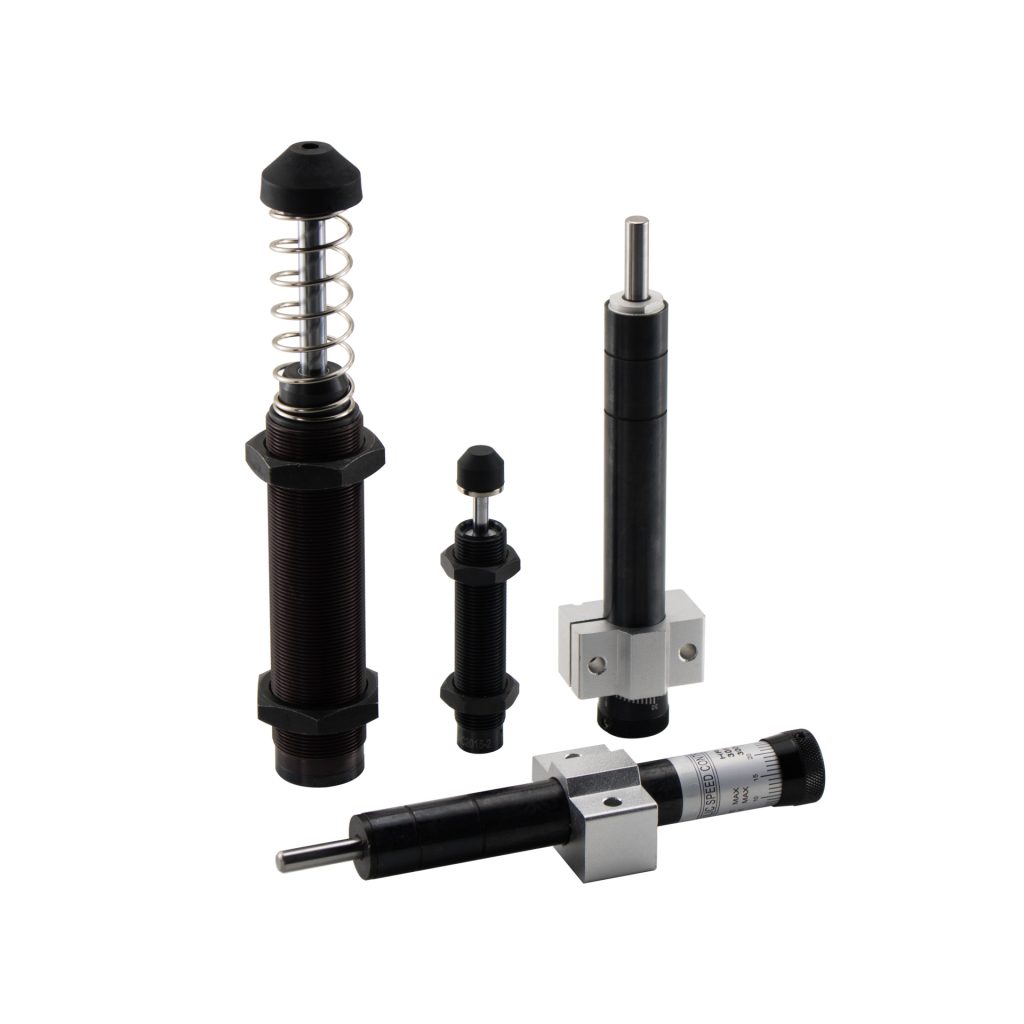

Hydraulic Shock Absorbers Used In Automation Machinery

They are widely used in automation equipment, vehicles, various tools, etc.

The hydraulic shock absorber can effectively absorb the vibration and noise generated by high-speed movement, convert kinetic energy into heat energy and release it in the atmosphere.The object is stopped smoothly and effectively in one action.This article mainly introduces the hydraulic shock absorbers which are used in automation machinery.
In the past, many manufacturers only used PU glue, springs, etc. as buffers to save costs, but the effect is not satisfied, the noise remains the same, and the efficiency cannot be improved.Choosing the hydraulic shock sbsorber will effectively solve the disadvantages of poor buffering. In the automated machinery, vibration and noise can be reduced,the object is balanced and effectively stopped; the efficiency of the machine is increased,the life of the machine is extended and the maintenance cost is reduced.

What's the Hydraulic Shock Absorbers?

All hydraulic shock absorbers is a kind of device which converting kinetic energy (movement) into thermic energy (heat) and release it in the atmosphere, meanwhile to insure the work

piece stop or decelerate to a certain speed with minimum load rebound,minimum shock to the load, and minimum shock to surrounding equipment.For that purpose, fluid in the shock absorber is forced to flow through restricted outlets and valve systems, thus generating hydraulic resistance.

AC series Hydraulic Shock Absorber The smart and compact design enable the ability to be installed in the narrow space. Full thread of the outer barrel make it easy to be adjusted. It is an ideal product of both absorbing shock energy and making the optimum soft stop. It plays a key part of reducing machines’ wearing away. Lightening maintaining time, extending using time.

AD series Adjustable Hydraulic Shock Absorber 0-270º one-side eccentric adjustment design effectively enlarge the debugging range. One-hole damping structure and multi-hole buffering structure are available for your selection according to your requirements. Full threaded barrel is flexible for installation and debugging.

What’s the Adjustable Hydraulic Speed Stabilizer or Hydraulic Speed Damper

It’s another kind of hydraulic shock absorber. Compared with the commons style, it not only

functions as a buffer, but also maintain the speed of the workpiece at a relatively stable level

after collision until the end of the stroke. Its internal structure is similar to the normal ones, and

is adjustable. The overflow holes of the common type are gradually disabled when the piston is

going forward,so the resistance is getting larger, finally making the workpiece stop smoothly.

Insteadly,the number of outlets in the speed stabilizer are kept constantly within a certain stroke

after the collision, so that the workpiece can run for a certain distance at a steady speed, and

finally decelerate until it stops. Hydraulic speed stabilizers are used in many industries. Precision speed stabilizers provide a

simpler and cost-reduced option. Among the pneumatic cylinders, it can supply very stable anti-pressure effect, making the pneumatic cylinder relying on the effect of resistance to produce a

stable forward speed, in addition, it will not affect the original design of the machine.

HR Series Hydraulic Speed Stabilizer Adopted whole closed structure which no needs the supplement of the hydraulic oil. The suddenly fluctuation of the load will not influence the buffer speed to much, we could achieve the purpose of stabilizing. Feed speed could be debugged easily by turning the knob. Filled with the befitting hydraulic oil which is stable along with the temperature changes make the long term performance steady and safe.

HRT Series Hydraulic Speed Stabilizer(Pneumatic Revert Type)

Added a pneumatic revert device, even though take away the load of the stabilizer, the piston rod will still stop at the primary position, and the piston rod must be reverted by the pneumatic device.The piston could be set to stop at any segment, so it’s easy for subsection feed control.

Get A Quick Quote

Helpful Link

Customized Product About Payment Fast Delivery (1-6days) Ocean Shipment(25-35days)

About Us Contact Us Product PDF Download

Get In Touch

How To Order Tel: 0086-13867843985 WhatsApp: 008613867843985

Technical Resources

Support & Tech Advice

Pneumatic Cylinder 40 Models For Choosing

What's the pneumatic cylinder?

Pneumatic Rotary Actuator

Compact Pneumatic Cylinder

Mini Roundline Pneumatic Cylinder

Cylinder Sensor Switch

Rodless Cylinder Guide
Cylinder Pneumatic Slide

Tie-Rod Pneumatic Cylinder And Profile Cylinder

Pneumatic Gripper Cylinder,
Pneumatic Clamp

Hydraulic Shock Absorber

How many types pneumatic cylinders there are,and where to find it?

1.Profile & Tie-Rod Cylinders or Actuator

2.Mini cylinder ,Sub-Miniature Cylinder, Micro air cylinder

3. What's The Guided Cylinder

4. Pneumatic rotary actuator or pneumatic rotary cylinder

5. What's The Rodless Cylinder

6. Pneumatic grippers and pneumatic clamps.

What's the Hydraulic Shock Absorbers?

What’s the Adjustable Hydraulic Speed Stabilizer or Hydraulic Speed Damper

Technical Resources

Support & Tech Advice

Pneumatic Cylinder 40 Models For Choosing

What's the pneumatic cylinder?

Pneumatic Rotary Actuator

Compact Pneumatic Cylinder

Mini Roundline Pneumatic Cylinder

Cylinder Sensor Switch

Rodless Cylinder Guide Cylinder Pneumatic Slide

Tie-Rod Pneumatic Cylinder And Profile Cylinder

Pneumatic Gripper Cylinder, Pneumatic Clamp

Hydraulic Shock Absorber

How many types pneumatic cylinders there are,and where to find it?

1.Profile & Tie-Rod Cylinders or Actuator

2.Mini cylinder ,Sub-Miniature Cylinder, Micro air cylinder

3. What's The Guided Cylinder

4. Pneumatic rotary actuator or pneumatic rotary cylinder

5. What's The Rodless Cylinder

6. Pneumatic grippers and pneumatic clamps.

What's the Hydraulic Shock Absorbers?

What’s the Adjustable Hydraulic Speed Stabilizer or Hydraulic Speed Damper

Rodless Cylinder Guide
Cylinder Pneumatic Slide

Pneumatic Gripper Cylinder,
Pneumatic Clamp
