When selecting a quick coupling for a hydraulic system, several critical factors must be evaluated to ensure optimal performance, durability, and efficiency.

1. Effective Orifice Rating

The effective orifice rating significantly impacts applications with high flow requirements. As the effective orifice size increases, the overall size of the fitting also grows to accommodate the higher flow capacity. Selecting an appropriate orifice rating ensures efficient fluid transfer and minimizes pressure drop.

2. Pressure Rating

The pressure rating of a quick coupling must align with the operational pressure of the application. Ensuring that the selected coupling can withstand the system’s pressure prevents failures, leaks, and potential safety hazards.

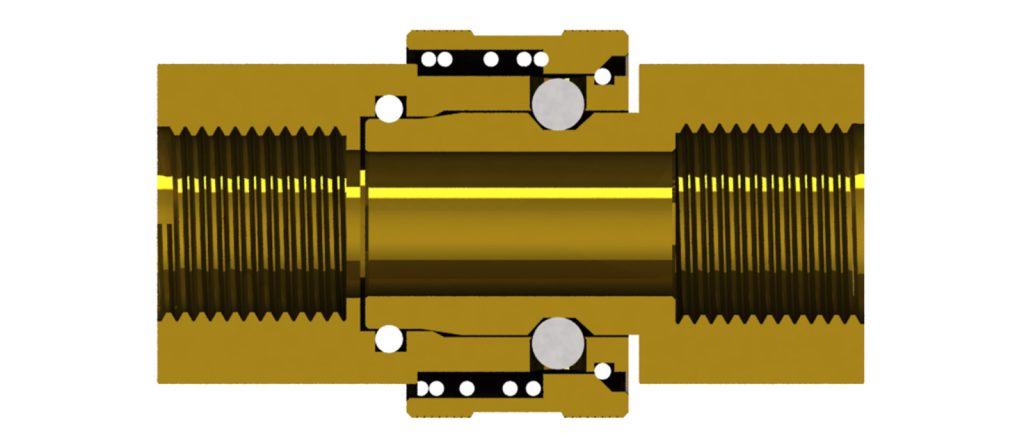

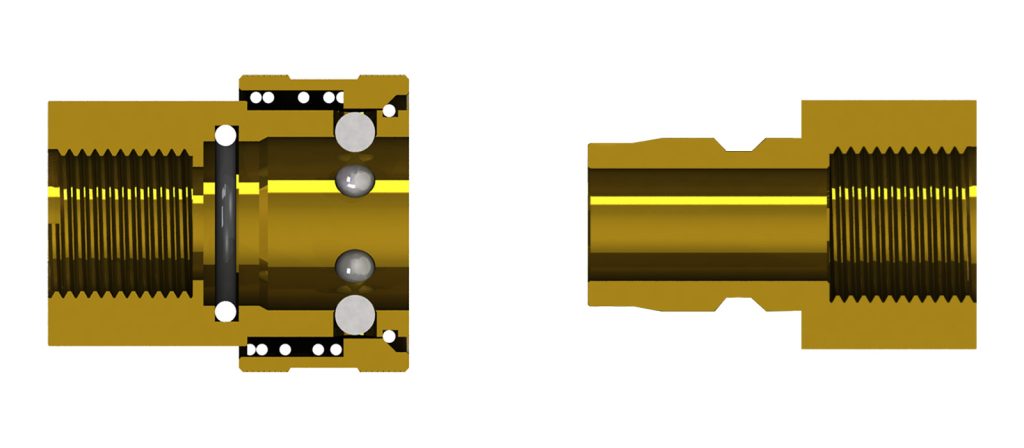

3. Frequency of Connection and Disconnection

The connection and disconnection frequency of the coupling is a crucial factor in selecting the appropriate type:

• Automatic Quick Coupler: We designe for frequent connections, this coupler allows the plug to be inserted without manually activating the sliding sleeve. Disconnection requires manual sleeve activation.
• Manual Quick Coupler: Requires manual sleeve retraction for both connection and disconnection, making it more suitable for applications with infrequent coupling changes.

4. Working Conditions

Environmental factors, such as exposure to extreme temperatures, high humidity, or corrosive elements, should be considered when selecting quick couplings. In harsh conditions, corrosion-resistant materials, such as stainless steel or specialized coatings, may be required to ensure long-term reliability.

5. Fluid Compatibility

The medium passing through the coupling directly affects material selection. When dealing with corrosive fluids, we should choose both the coupling body and sealing elements carefully. For example, refrigerants can degrade standard NBR (nitrile rubber) O-rings, leading to seal failure. In such cases, alternative materials, such as FKM (Viton) or EPDM, should be considered for enhanced chemical resistance.

By carefully evaluating these factors, engineers can select the most suitable quick coupling for their specific application, ensuring durability, efficiency, and operational safety.
